FLEX 300/500 V - Com. Seg.

DoP Technical Sheet

STANDARDS

- CEI EN 50525-2-11 (p.q.a / as applicable);
- CEI EN 50363 (p.q.a / as applicable);
- CEI EN/IEC 60228;
- CEI EN/IEC 60332-1-2.
- CEI EN 50575:2014+A1:2016

Use

Residential building

Commercial, industrial, public building

EUROPEAN DIRECTIVES

RoSH
2011/65/UE (RoHS)
2015/863/UE

REACH
Regolamento CE n° 1907/2006

LVD
Direttiva 2014/35/UE

CPR
305/2011 EU

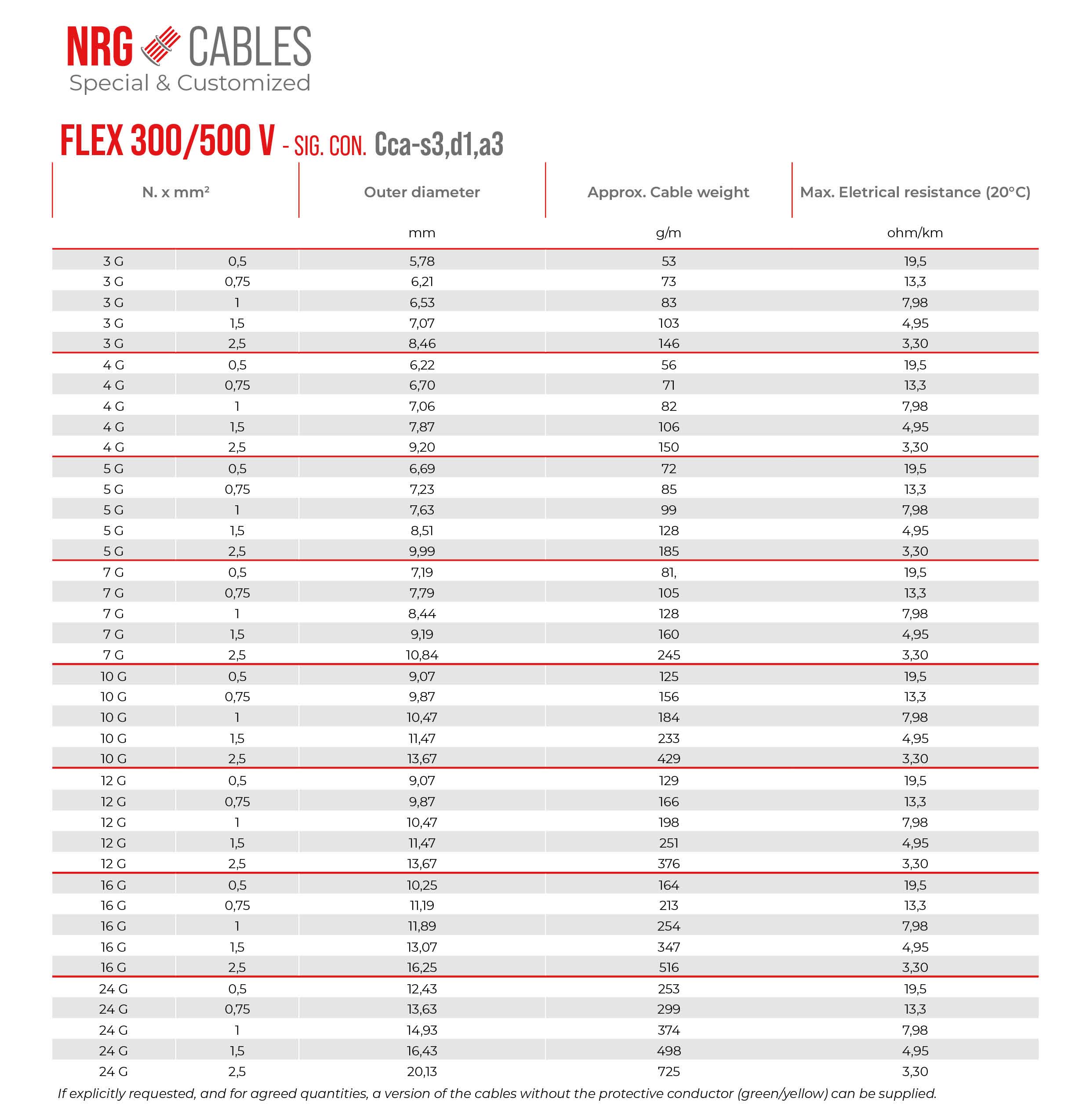

FLEX 300/500 V - Com. Seg.

CPRCca-s3,d1,a3

Construction features

  • Conductor

    Flexible annealed copper, class 5. CEI EN/IEC 60228.

  • Insulation

    PVC type TI2.

  • Cores colour

    Black, with white progressive numbers, with or without the green/yellow earth core.

  • Sheath

    PVC type TM2.

  • Sheath colour

    Light grey.

Technical features

Rated voltage

Uo/U 300/500 V

Tensile

5 Kg/mm2

Radius

3 ÷ 8 x Øe.

Installation min. Temperature

0°C

Min. usage temperature

-15°C

Temperature on the conductor

70°C

Short circuit temperature

150°C

Use and installation method

For mobile connections and where required for fixed installation. Suitable for indoor installation, in dry or humid rooms, and outdoors for intermittent or temporary use; for connections and electrical equipment, electrical panels. It can be used in all industrial environments. Not suitable for underground installation.

Marking

Progressive metric marking.
NRG CABLES FLEX 300/500 V N. cores x/G section mm² dd.mm.yy Made in Italy Cca-s3,d1,a3.

If explicitly requested, and for agreed quantities, a version of the cables without the protective conductor (green/yellow) can be supplied.
