FG16OH2R16-0,6/1 kV

DoP Technical Sheet

STANDARDS

- CEI 20-13
- CEI UNEL 35318
- CEI 20-11
- CEI EN/IEC 60228
- CEI EN 50399
- CEI EN 60754-2
- CEI EN/IEC 60332-1-2
- CEI EN 50575:2014+A1:2016

Use

Commercial, industrial, public building

EUROPEAN DIRECTIVES

RoSH
2011/65/UE (RoHS)
2015/863/UE

REACH
Regolamento CE n° 1907/2006

LVD
Direttiva 2014/35/UE

CPR
305/2011 EU

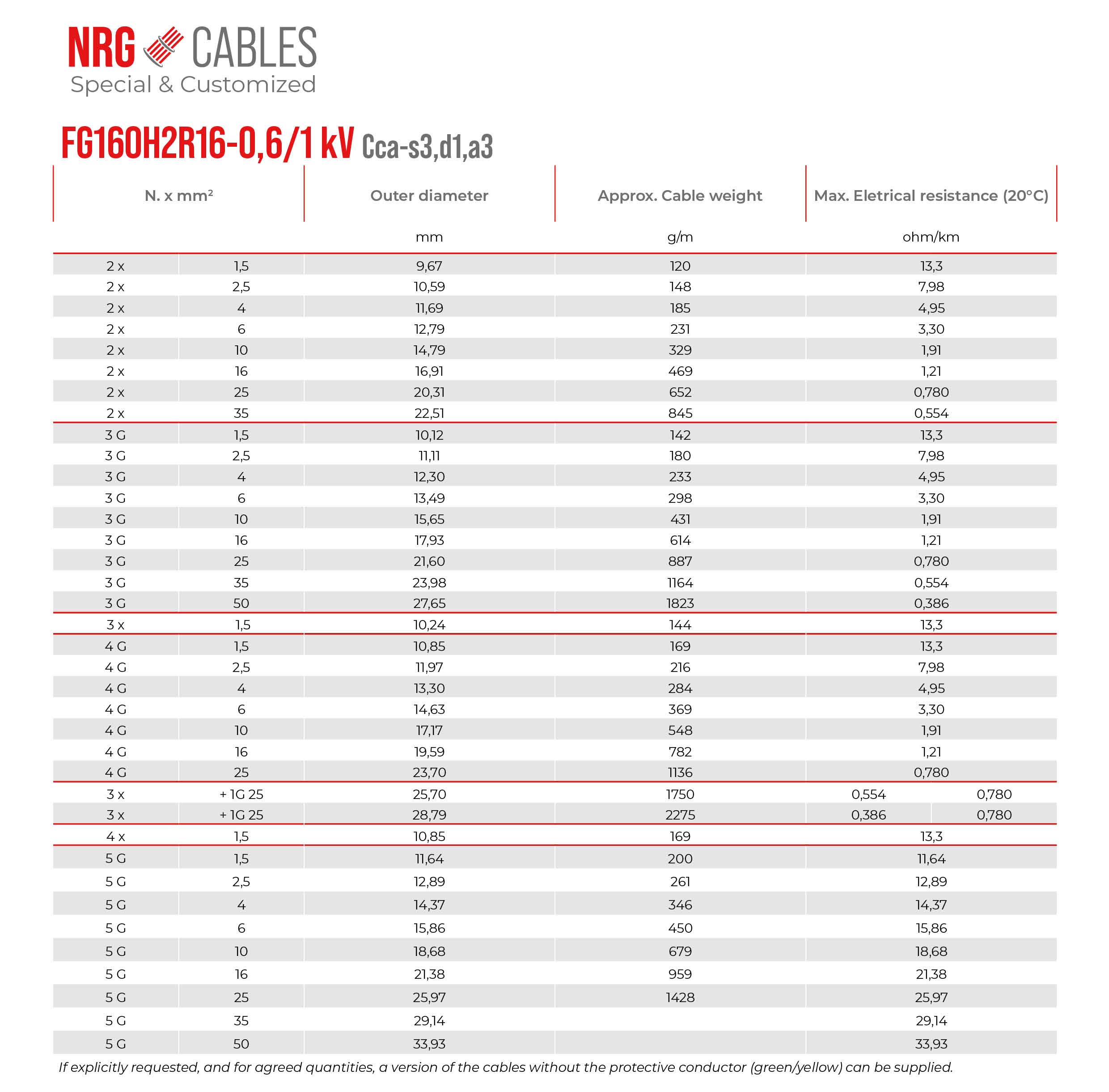

FG16OH2R16-0,6/1 kV

CPRCca-s3,d1,a3

Braid shield

Construction features

  • Conductor

    Flexible annealed copper, class 5. CEI EN/IEC 60228.

  • Insulation

    Hard ethylene propylene rubber (HEPR) compound, of type G16.

  • Cores colour

    Yellow/green-blue-brown-black-grey

  • Shield

    Shield annealed copper braid.

  • Sheath

    PVC type R16 with reduced emission of halogen (corrosive gases).

  • Sheath colour

    Light grey.

Technical features

Rated voltage

Uo/U 600/1000 V

Tensile

5 Kg/mm2

Radius

10 x Øe.

Installation min. Temperature

0°C

Min. usage temperature

-15°C

Temperature on the conductor

90°C

Short circuit temperature

250°C

Use and installation method

Inside, even in wet environments and outside; fixed installation on masonry and metal structures, protected underground installation allowed. Normally intended for the interconnection between parts of construction machinery, including machine tools, when a certain degree of protection against electromagnetic interference is required.
Further instructions and warnings for the use of these cables are given in the CEI 20-67 standard.

Marking

Progressive metric marking.
NRG CABLES FG16OH2R16-0,6/1 kV N. cores x section mm² dd.mm.yy Made in Italy Cca-s3,d1,a3.

If explicitly requested, and for agreed quantities, a version of the cables without the protective conductor (green/yellow) can be supplied.
